AgenticOS — Personal AI Command Center

Overview

AgenticOS is a fully custom, self-hosted personal AI command center built around Anthropic's Claude Code CLI. It wraps the raw Claude Code agent in a bespoke web application with an immersive vintage phosphor green CRT cockpit aesthetic — designed to feel like a military operations terminal or retro computer workstation rather than a generic chat interface.

Purpose

Rather than interacting with Claude Code through a plain terminal, AgenticOS provides:

• A persistent, session-aware chat interface with full message history stored to disk
• A real-time system status dashboard showing WebSocket health, API connectivity, auth state, uptime, and mission count
• A live radar scope using GPS geolocation and vector map tiles rendered in CRT green
• A model selector with instant switching between Opus 4.6, Sonnet 4.6, and Haiku 4.5
• Tool call visualization — every Claude tool use (file reads, edits, searches) is shown as an expandable card with live status
• A full file explorer and sessions browser for navigating past conversations

Architecture

Stack

Communication Flow

Browser (React)  ──HTTP──►  Express (port 3001)  ──spawn──►  claude CLI
                 ◄──WS───   WebSocket Server      ◄──stdout─  streaming output

The Express server spawns claude as a child process and pipes its streamed JSON output over a WebSocket connection to the frontend in real time. This means every token, tool call, and status update appears live in the UI as Claude works.

Session Persistence

All conversations ("missions") are stored in data/sessions.json and survive server restarts. Each session tracks:

• Unique ID (UUID)
• Title
• Creation timestamp
• Message count
• Full message history (user + assistant + tool calls)

UI Design System

The entire interface follows a strict Vintage Phosphor Green CRT Cockpit theme. Key design decisions:

• Background: Near-black #010801 / #041a04 — the dark phosphor base
• Primary accent: #00ff41 — bright phosphor green for active elements
• Mid-tone green: #33aa33 — secondary labels and radar overlays
• Dark green: #0d4d0d — subtle grid lines, borders, inactive states
• Typography: Monospace (font-mono), wide letter-spacing (tracking-widest), ALL CAPS labels
• Animations: Radar sweep rotation, pulsing status dots, cursor blink effect

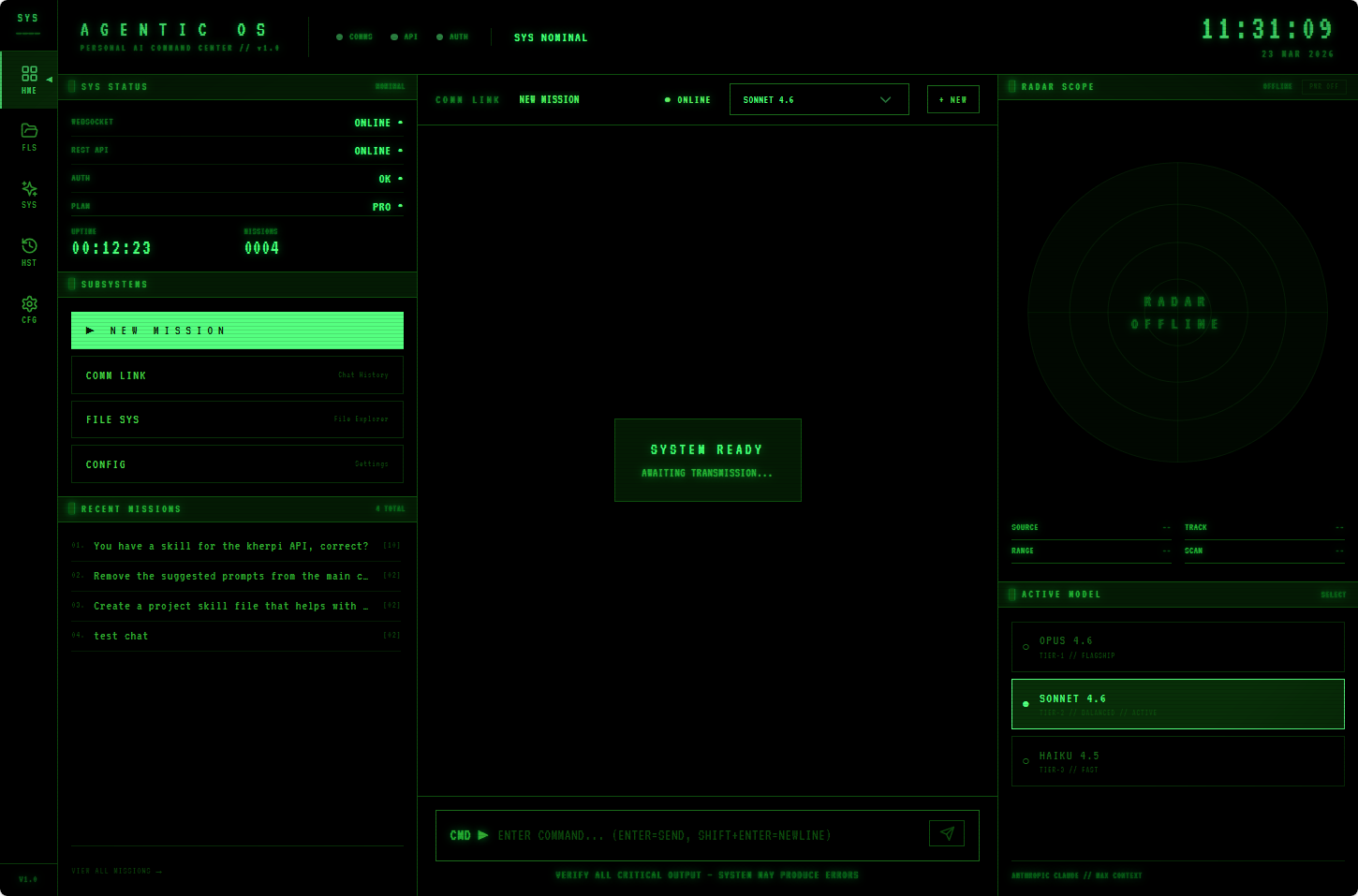

• Layout: Three-column cockpit layout on the Home view — left status/nav panel, center chat, right radar/model panel

Views

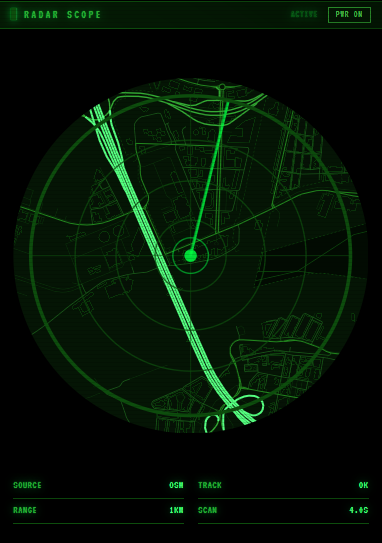

Radar Scope

One of the signature features of AgenticOS is the Radar Scope panel — a circular map widget that:

1. Requests GPS geolocation from the browser
2. Centers a MapLibre GL map on the user's location at zoom level 13
3. Renders the map in full CRT green monochrome using a custom vector style:
   • Background: #041a04
   • Roads: green gradients from #0a330a (paths) to #55ff80 (motorways)
   • Water: #020b02
   • Buildings: #061206 with #0a3a0a outlines
4. Overlays a rotating radar sweep animation and concentric range rings
5. Shows a pulsing dot at the user's current position

The radar can be toggled on/off with a PWR ON / PWR OFF button, which switches it to a static offline SVG when disabled.

Claude Integration

Models Supported

The model is selectable live from the right panel on the Home view, persisted in global Zustand state, and passed to the server on each new message.

Tool Call Visualization

When Claude performs an action (reads a file, runs a bash command, searches code), the frontend renders a ToolCallCard component showing:

• Tool name (e.g., Read, Bash, Grep)
• Execution status: [ WAIT ], [ RUN ], [ DONE ], or [ ERR ]
• Expandable input/output details

Skills System

AgenticOS extends Claude's capabilities via a skills system — Markdown prompt files stored in .claude/skills/. Currently active skills:

Development

Running Locally

# Install all dependencies
npm run setup

# Start both server and client in development mode
npm run dev

The server runs on http://localhost:3001 and the Vite dev server proxies API calls.

Environment

CLAUDE_MODEL=claude-sonnet-4-6
PORT=3001
KHERPI_API_TOKEN=<your_token>

Project Structure

AgenticOS/
├── client/              # React + TypeScript frontend
│   └── src/
│       ├── views/       # HomeView, ChatView, SessionsView, etc.
│       ├── components/  # Sidebar, UI primitives
│       └── store/       # Zustand global state
├── server/              # Node.js + Express backend
│   └── src/
│       ├── index.js     # Main server, WebSocket, Claude spawn
│       └── auth.js      # Claude auth status check
├── data/                # Persistent session storage
├── docs/                # Screenshots and documentation assets
└── .claude/             # Claude Code configuration and skills
    └── skills/          # Skill prompt files

Status

• Version: 1.0
• Platform: Windows 11 Pro
• Primary model: Claude Sonnet 4.6
• State: Active development
